DC 24V M3 Diffuse Mini Laser Proxmity Sensor Laser Switch For Tiny Object Detection
Product quick details
Series:M3 diffuse laser sensor

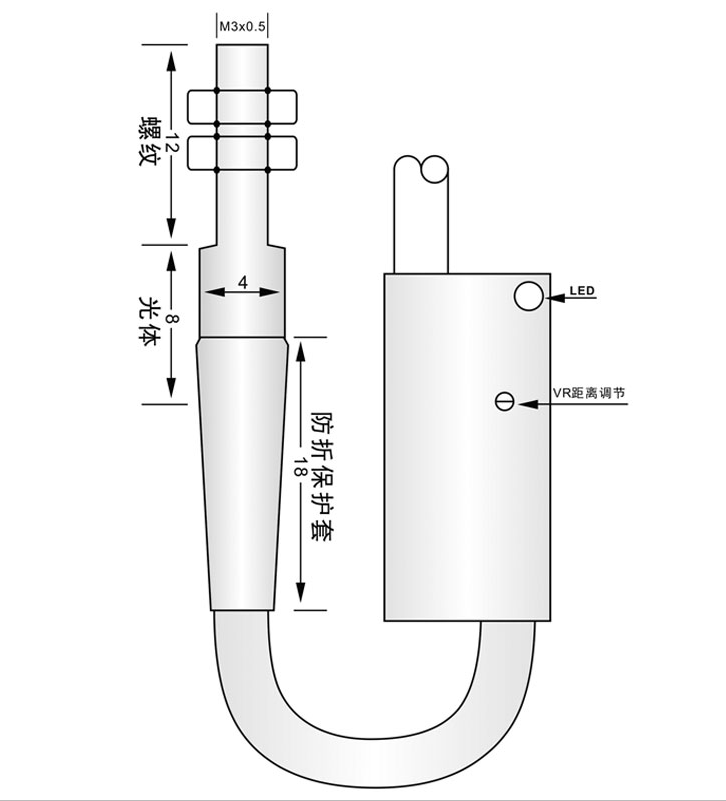

Size: :M3*0.5*20mm
Housing Material:Stainless steel
Spot size:2mm spot
The light source:Red(660nm)
Sensing Distance Sn:1-40mm adjustable
Operating Voltage :DC 10-30V
Output function:NPN/PNP NO/NC
Connection:2M PVC cable
Datasheet of the sensor :
| DC M3 Ultra-Mini laser sensor diffuse mode |
| Size | M3*20mm |
| Sensing Distance Sn:(M) | 30mm adjustable | 40mm adjustable |
| Spot size | 1.0mm small spot |
| Housing Material | Stainless steel |
| ●With or Without LED | ● With LED |
| The light source | Red(660nm) |
| Operating Voltage | 10-30VDC |
| DC Ripple | <10% |
| No Load Current | <10mA |
| Max.Load Current | 150mA |
| Leakage Current | <0.01mA |
| Voltage Drop | <1.5V |
| Switching Frequency | 100Hz |
| Response Time | 5ms |
| Switching Hysteresis | <15%(Sr) |
| Repeat Accuracy | <5-10%(Sr) |
| Protection Category | IP65 |
| Operating Temperature | 0°C - 50°C |
| Temperature Drift | <10%(Sr) |
| Short Circuit Protection | YES |
| Overload Trip Point | 180mA |
| EMC | RFI>3V/M / EFT>1KV / ESD>4KV(contact) |
| Shock/Vibration | IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2 |
| Material Active Face | Filter Mirror |
| Connection | D3.8 3*0.15 black PVC 2M |
| DC 3-wire 10-30V NPN NO | LTD-0330NO | LTD-0340NO |
| DC 3-wire 10-30V NPN NC | LTD-0330NC | LTD-0340NC |
| DC 3-wire 10-30V PNP NO | LTD-0330PO | LTD-0340PO |
| DC 3-wire 10-30V PNP NC | LTD-0330PC | LTD-0340PC |
FAQ :
Shipping ways
Our normal shipping way is internation express, such as DHL,FEDEX, TNT and so on;
When the gross weight is over 45kg, air trnasportation is also a good way for the customers to save some cost;
Sea transportation is also can be considered, but only appointed agent accetpable.
Payment term and delivery time
1. Generaly speaking, 30% deposit in advance, balance paid before the shipping;
2. Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee;
3. Delivery time:
the sensors will be shipped out in 3 days when we receive the payment if we have stocks;
If no stocks, the delivery time will be 7-10days when we received the PO or deposit.
After-sales services
1. The warranty period is 12 months
2. If we send the wrong parts to you, free replacement will be available
3. As for the installation of the parts. if you have any questions, please do not hesitate to contact us at any time.
